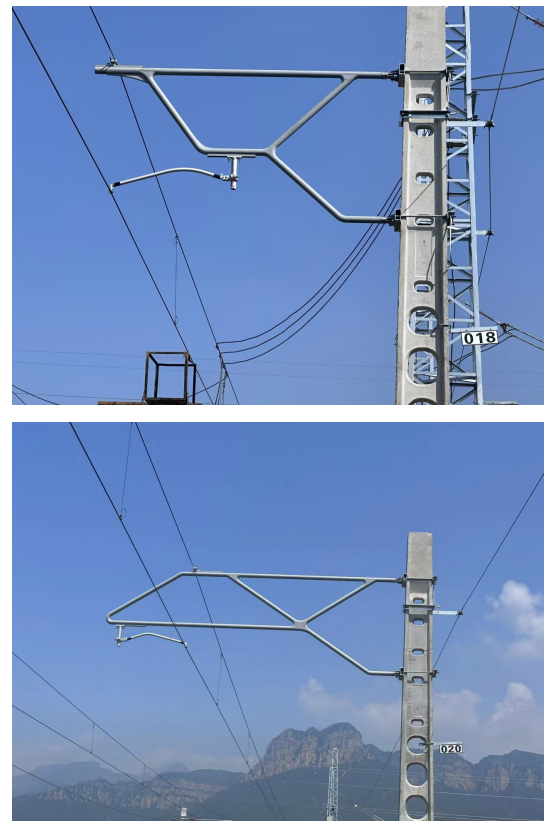

| Cantilever Device with polymeric material (Railway) | ||||||||||
| Name | Power freq. withstand voltage, dry / wet （≥kV) | Artifical Pollution Withstand Votlage （≥kV) | Lightning impulse withstand voltage （≥kV) | Number of fatigue shocks （Shocks） | Horizontal breaking load （≥kN) | Vertical Breaking Load （≥kN) | operating Load, Upper （≥kN) | operating Load, Lower （≥kN) | Fixed point deflection （mm） | Creepage distance （mm） |
| Railway Integral Cantilever Device with polymeric material (Positive positioning) | 190/150 | 36 | 310 | 1.0×106 | 18 | 8 | 6 | 2.5 | ≤1%× Total Length | ≥1600 |
| Railway Integral Cantilever Device with polymeric material (Negative positioning) | 190/150 | 36 | 310 | 1.0×106 | 18 | 8 | 6 | 2.5 | ≤1%× Total Length | ≥1600 |
